Solve Inverse Problems of Differential Equations with PDE-Net and Realize Long-Term Prediction
Overview
PDE-Net is a feedforward deep network proposed by Zichao Long et al. to learn partial differential equations from data, predict the dynamic characteristics of complex systems accurately and uncover potential PDE models. The basic idea of PDE-Net is to approximate differential operators by learning convolution kernels (filters). Neural networks or other machine learning methods are applied to fit unknown nonlinear responses. Numerical experiments show that the model can identify the observed dynamical equations and predict the dynamical behavior over a relatively long period of time, even in noisy environments. More information can be found in the original paper.
Problem Description
This case solves the inverse problem of convection-diffusion partial differential equations with variable parameters and realizes long-term prediction.
Governing Equation
In this study, the convection-diffusion equation is of the form:
The coefficients of each derivative are:

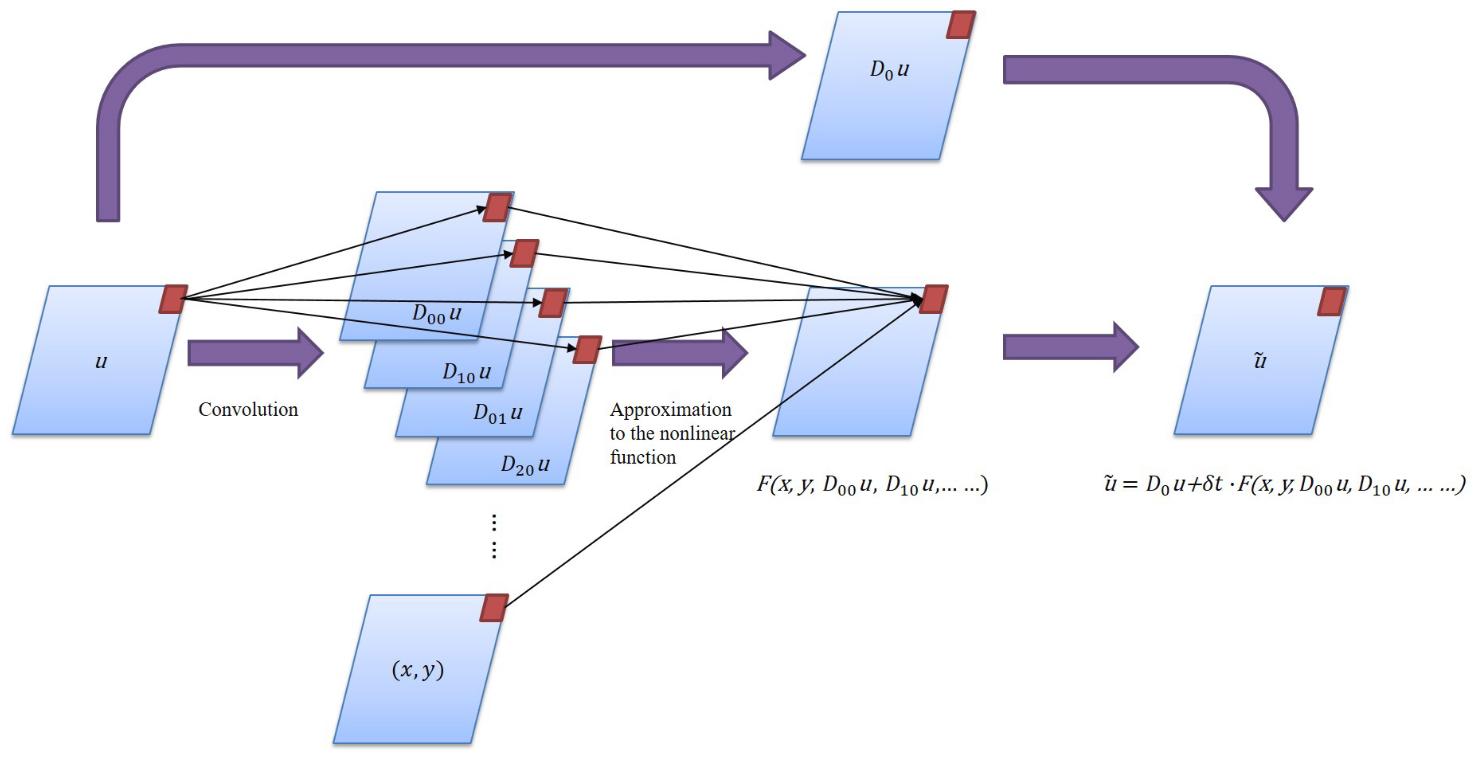

Model Structure of the PDE-Net

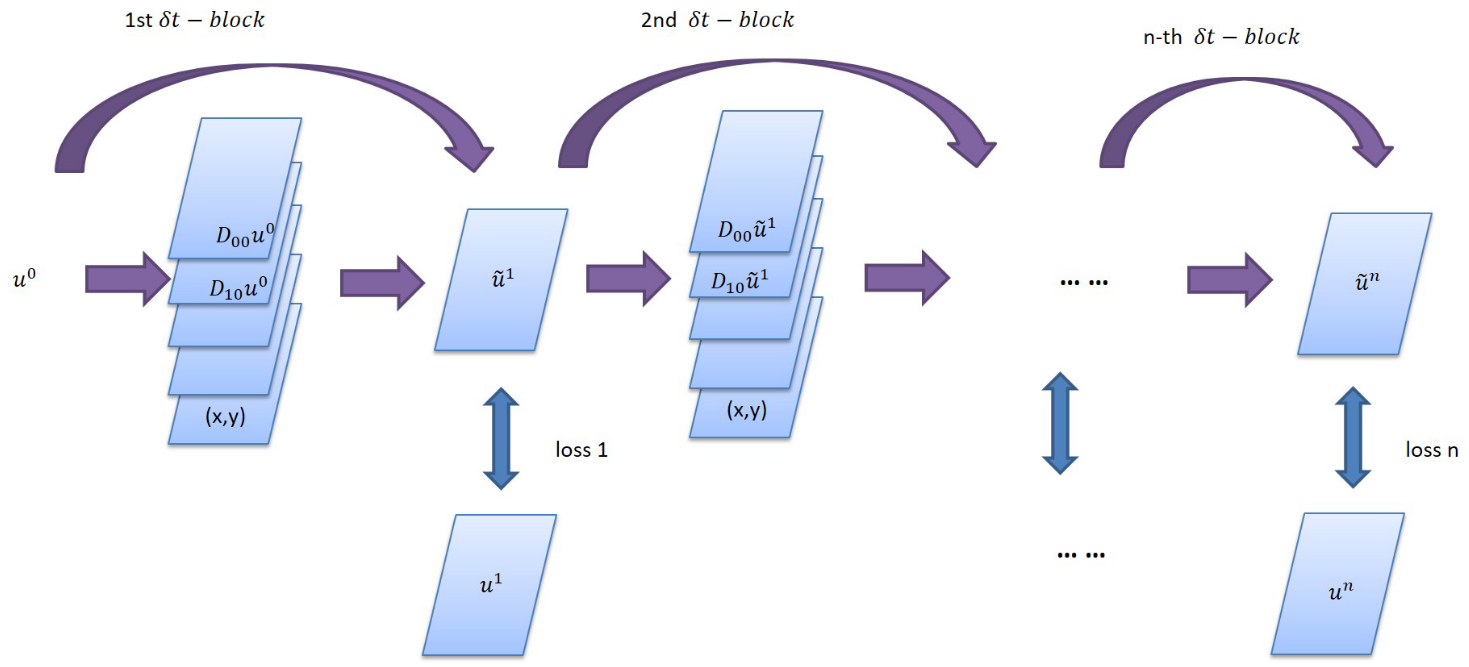

The PDE-Net consists of multiple
Script Description
You can set training parameters and sampling parameters in config.py.
train_config = ed({
"name": "pde_net", # Case Description
"log_path": "./logs/result/", # log file location
"summary_dir": "./summary_dir/summary", # summary file location
"eval_interval": 10, # Evaluation period
"lr_scheduler_gamma": 0.5, # learning rate scheduler coefficient
"lr": 0.001, # Initial learning rate
"save_epoch_interval": 50, # ckpt save period
"mesh_size": 50, # Mesh size
"solver_mesh_scale": 5, # Sampling ratio of the solver data
"enable_noise": True, # Whether to add noise to the sample
"start_noise_level": 0.015, # Input noise/signal ratio
"end_noise_level": 0.015, # Output noise/signal ratio
"variant_coe_magnitude": 1.0, # Differential Equation Coefficient Scaling Ratio
"init_freq": 4, # Frequency in the initial condition
"batch_size": 16, # batch size
"mindrecord": "src/data.mindrecord", # Mindrecord save location
"epochs": 500, # number of epochs
"multi_step": 20, # number of steps
"learning_rate_reduce_times": 4, # learning rate adjustment times
"dt": 0.015, # time step predicted by a single step
"kernel_size": 5, # size of the convolution kernel
"max_order": 4, # maximum differential order corresponding to the convolution kernel
"channels": 1, # number of data channels
"perodic_padding": True, # whether to use periodic boundary conditions
"if_frozen": False, # whether to freeze parameters in the moment
"enable_moment": True, # whether to use the moment to control convolution
})
Solution Process
The PDE-Net solution to the inverse problem of partial differential equations consists of the following five steps:
Data Generation and Loading.
Model Construction.
Model Training.
Model Evaluation and Visualization.
Long-Term Prediction.
Data Generation and Loading
The distribution of the initial physical field of the PDE-Net is obtained according to the Fourier series of the random coefficients. The convection-diffusion equation is solved according to the spectral method, where step represents the number of series of
from src.data_generator import DataGenerator
data = DataGenerator(step=i, config=config, mode="train", data_size=2*config["batch_size"], file_name="data/train_step" + str(i) + ".mindrecord")
data.process()
DataPrepare is used to generate data sets required for model training. During training, train_data_prepare can be invoked to generate training sets and test sets. You can call test_data_prepare to generate test data sets in long-term prediction and result visualization.
import mindspore.dataset as ds
class DataPrepare():
"""Obtain dataset for train or test from mindrecord."""
def __init__(self, config, data_file):
self.mesh_size = config["mesh_size"]
self.batch_size = config["batch_size"]
self.data_file = data_file
def test_data_prepare(self, step):
dataset = ds.MindDataset(dataset_files=self.data_file, shuffle=True, columns_list=["u0", "u_step{}".format(step)])
dataset = dataset.batch(batch_size=1)
return dataset
def train_data_prepare(self):
dataset = ds.MindDataset(dataset_files=self.data_file, shuffle=True, columns_list=["u0", "uT"])
dataset = dataset.batch(batch_size=self.batch_size, drop_remainder=True)
operations = [lambda x, y: (
x.reshape(-1, 1, self.mesh_size, self.mesh_size), y.reshape(-1, 1, self.mesh_size, self.mesh_size))]
dataset = dataset.map(operations, input_columns=["u0", "uT"])
dataset_train, dataset_eval = dataset.split([0.5, 0.5])
return dataset_train, dataset_eval
Model Construction
MindFlow provides the PDENet interface to directly create a PDE-Net model. You need to specify the width, height, data depth, boundary condition, and highest order of fitting.
from mindflow.cell.neural_operators import PDENet
def init_model(config, step):
return PDENet(height=config["mesh_size"],
width=config["mesh_size"],
channels=config["channels"],
kernel_size=config["kernel_size"],
max_order=config["max_order"],
step=step,
dx=2 * np.pi / config["mesh_size"],
dy=2 * np.pi / config["mesh_size"],
dt=config["dt"],
periodic=config["perodic_padding"],
enable_moment=config["enable_moment"],
if_fronzen=config["if_frozen"],
)
Model Training
The parameters of each
def train_single_step(step, logger, config, lr):
dataset = DataPrepare(config=config, data_file="data/train_step{}.mindrecord".format(step))
train_dataset, eval_dataset = dataset.train_data_prepare()
print("dataset size: {}".format(train_dataset.get_dataset_size()))
model = init_model(config, step)
epoch = config["epochs"]
warm_up_epoch_scale = 10
if step == 1:
model.if_fronzen = True
epoch = warm_up_epoch_scale * epoch
elif step == 2:
param_dict = load_checkpoint(
"./summary_dir/summary/ckpt/step_{}/pdenet-{}_1.ckpt".format(step - 1, epoch * 10))
load_param_into_net(model, param_dict)
print("Load pre-trained model successfully")
else:
param_dict = load_checkpoint(
"./summary_dir/summary/ckpt/step_{}/pdenet-{}_1.ckpt".format(step - 1, epoch))
load_param_into_net(model, param_dict)
print("Load pre-trained model successfully")
optimizer = nn.Adam(model.trainable_params(), learning_rate=Tensor(lr))
loss_func = LpLoss(size_average=False)
loss_scale = DynamicLossScaleManager()
solver = Model(model,
optimizer=optimizer,
loss_scale_manager=loss_scale,
loss_fn=loss_func
)
pred_cb, time_cb = _callback(model, eval_dataset, logger, step, config)
ckpt_cb = _checkpoint("./summary_dir/summary/ckpt/step_{}".format(step), config["save_epoch_interval"])
solver.train(epoch=epoch,
train_dataset=train_dataset,
callbacks=[LossMonitor(), pred_cb, time_cb, ckpt_cb],
dataset_sink_mode=True
)
def train(config, logger):
lr = config["lr"]
for i in range(1, config["multi_step"] + 1):
data = DataGenerator(step=i, config=config, mode="train", data_size=2 * config["batch_size"],
file_name="data/train_step{}.mindrecord".format(i))
data.process()
lr = _scheduler(int(config["multi_step"] / config["learning_rate_reduce_times"]), step=i, lr=lr)
train_single_step(step=i, config=config, logger=logger, lr=lr)
The model training process is as follows:
...
Train epoch time: 202.947 ms, per step time: 202.947 ms
epoch: 487 step: 1, loss is Tensor(shape=[], dtype=Float32, value= 0.663754)
Train epoch time: 159.724 ms, per step time: 159.724 ms
epoch: 488 step: 1, loss is Tensor(shape=[], dtype=Float32, value= 0.651065)
Train epoch time: 168.118 ms, per step time: 168.118 ms
epoch: 489 step: 1, loss is Tensor(shape=[], dtype=Float32, value= 0.648911)
Train epoch time: 151.441 ms, per step time: 151.441 ms
epoch: 490 step: 1, loss is Tensor(shape=[], dtype=Float32, value= 0.648038)
================================Start Evaluation================================
LpLoss_error: 0.04020831733942032
=================================End Evaluation=================================
predict total time: 0.4999086856842041 s
Train epoch time: 658.657 ms, per step time: 658.657 ms
epoch: 491 step: 1, loss is Tensor(shape=[], dtype=Float32, value= 0.640651)
Train epoch time: 113.954 ms, per step time: 113.954 ms
epoch: 492 step: 1, loss is Tensor(shape=[], dtype=Float32, value= 0.630344)
Train epoch time: 166.617 ms, per step time: 166.617 ms
epoch: 493 step: 1, loss is Tensor(shape=[], dtype=Float32, value= 0.606285)
Train epoch time: 182.399 ms, per step time: 182.399 ms
epoch: 494 step: 1, loss is Tensor(shape=[], dtype=Float32, value= 0.639116)
Train epoch time: 133.293 ms, per step time: 133.293 ms
epoch: 495 step: 1, loss is Tensor(shape=[], dtype=Float32, value= 0.631353)
Train epoch time: 136.290 ms, per step time: 136.290 ms
epoch: 496 step: 1, loss is Tensor(shape=[], dtype=Float32, value= 0.638366)
Train epoch time: 219.318 ms, per step time: 219.318 ms
epoch: 497 step: 1, loss is Tensor(shape=[], dtype=Float32, value= 0.639544)
Train epoch time: 202.168 ms, per step time: 202.168 ms
epoch: 498 step: 1, loss is Tensor(shape=[], dtype=Float32, value= 0.631913)
Train epoch time: 151.460 ms, per step time: 151.460 ms
epoch: 499 step: 1, loss is Tensor(shape=[], dtype=Float32, value= 0.640468)
Train epoch time: 138.932 ms, per step time: 138.932 ms
epoch: 500 step: 1, loss is Tensor(shape=[], dtype=Float32, value= 0.640138)
================================Start Evaluation================================
LpLoss_error: 0.03963303565979004
=================================End Evaluation=================================
predict total time: 0.5544295310974121 s
Model Evaluation and Visualization

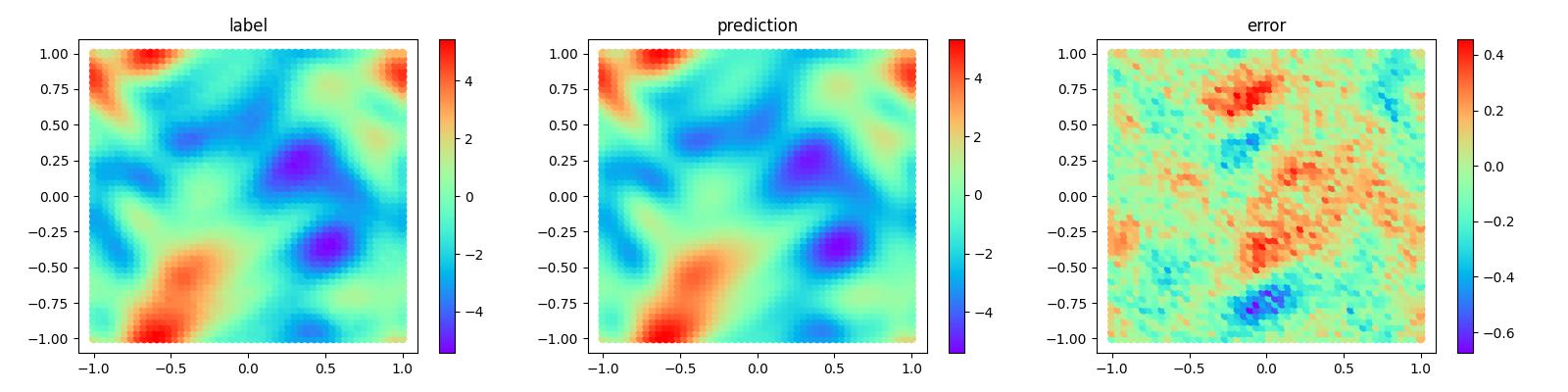

After the model training is complete, run the visualization.py file to test and visualize the model training result. The following figure shows the comparison between the prediction result and label.

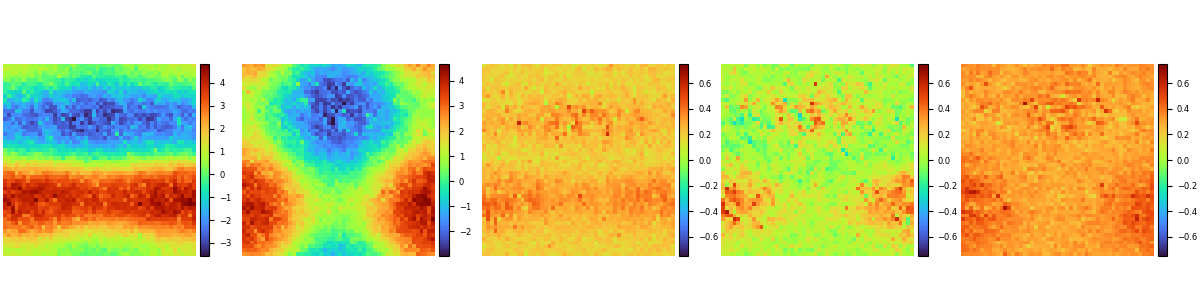

The coefficient regression results of the partial differential equation are as follows:

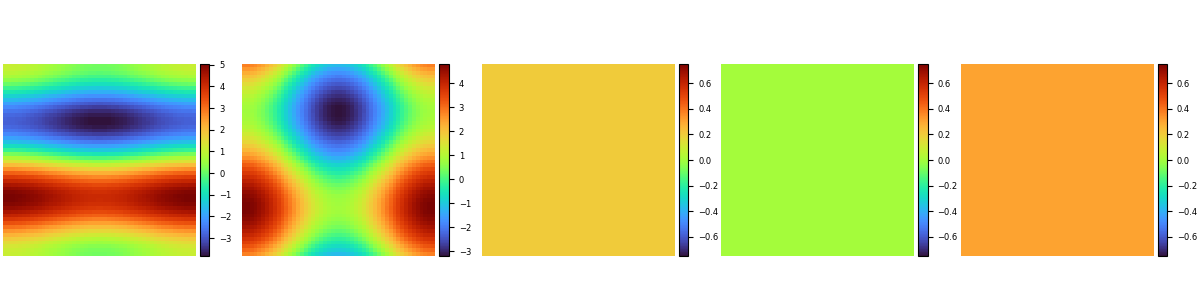

The data labels for the coefficients of the partial differential equation are as follows:
Long-Term Prediction
Further, the trained PDE-Net can be used for longer predictions. Perform multiple sets of tests and plot 25% and 75% of the error as banded curves, as shown in the figure:
