mindspore.ops.gather

mindspore.ops.gather(input_params, input_indices, axis, batch_dims=0)[source]

Returns the slice of the input tensor corresponding to the elements of input_indices on the specified axis.

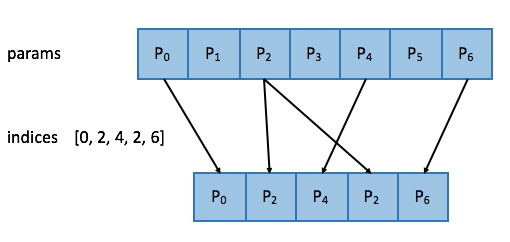

The following figure shows the calculation process of Gather commonly:

../../_images/Gather.png

where params represents the input input_params, and indices represents the index to be sliced input_indices.

Note

  1. The value of input_indices must be in the range of [0, input_param.shape[axis]), the result is undefined out of range.

  2. The data type of input_params cannot be bool_ on Ascend platform currently.

Parameters

  • input_params (Tensor) – The original Tensor. The shape of tensor is \((x_1, x_2, ..., x_R)\).

  • input_indices (Tensor) – Index tensor to be sliced, the shape of tensor is \((y_1, y_2, ..., y_S)\). Specifies the indices of elements of the original Tensor. The data type can be int32 or int64.

  • axis (Union(int, Tensor[int])) – Specifies the dimension index to gather indices. It must be greater than or equal to batch_dims. When axis is a Tensor, the size must be 1.

  • batch_dims (int) – Specifies the number of batch dimensions. It must be less than or euqal to the rank of input_indices. Default: 0 .

Returns

Tensor, the shape of tensor is \(input\_params.shape[:axis] + input\_indices.shape[batch\_dims:] + input\_params.shape[axis + 1:]\).

Raises

  • TypeError – If axis is not an int or Tensor.

  • ValueError – If axis is a Tensor and its size is not 1.

  • TypeError – If input_params is not a tensor.

  • TypeError – If input_indices is not a tensor of type int.

Supported Platforms:

Ascend GPU CPU

Examples

>>> import mindspore
>>> import numpy as np
>>> from mindspore import Tensor, ops
>>> # case1: input_indices is a Tensor with shape (5, ).
>>> input_params = Tensor(np.array([1, 2, 3, 4, 5, 6, 7]), mindspore.float32)
>>> input_indices = Tensor(np.array([0, 2, 4, 2, 6]), mindspore.int32)
>>> axis = 0
>>> output = ops.gather(input_params, input_indices, axis)
>>> print(output)
[1. 3. 5. 3. 7.]
>>> # case2: input_indices is a Tensor with shape (2, 2). When the input_params has one dimension,
>>> # the output shape is equal to the input_indices shape.
>>> input_indices = Tensor(np.array([[0, 2], [2, 6]]), mindspore.int32)
>>> axis = 0
>>> output = ops.gather(input_params, input_indices, axis)
>>> print(output)
[[1. 3.]
 [3. 7.]]
>>> # case3: input_indices is a Tensor with shape (2, ) and
>>> # input_params is a Tensor with shape (3, 4) and axis is 0.
>>> input_params = Tensor(np.array([[1, 2, 3, 4], [5, 6, 7, 8], [9, 10, 11, 12]]), mindspore.float32)
>>> input_indices = Tensor(np.array([0, 2]), mindspore.int32)
>>> axis = 0
>>> output = ops.gather(input_params, input_indices, axis)
>>> print(output)
[[ 1.  2.  3.  4.]
 [ 9. 10. 11. 12.]]
>>> # case4: input_indices is a Tensor with shape (2, ) and
>>> # input_params is a Tensor with shape (3, 4) and axis is 1, batch_dims is 1.
>>> input_params = Tensor(np.array([[1, 2, 3, 4], [5, 6, 7, 8], [9, 10, 11, 12]]), mindspore.float32)
>>> input_indices = Tensor(np.array([0, 2, 1]), mindspore.int32)
>>> axis = 1
>>> batch_dims = 1
>>> output = ops.gather(input_params, input_indices, axis, batch_dims)
>>> print(output)
[ 1.  7. 10.]
