mindspore.dataset.utils.imshow_det_bbox

mindspore.dataset.utils.imshow_det_bbox(image, bboxes, labels, segm=None, class_names=None, score_threshold=0, bbox_color=(0, 255, 0), text_color=(203, 192, 255), mask_color=(128, 0, 128), thickness=2, font_size=0.8, show=True, win_name='win', wait_time=2000, out_file=None)[source]

Draw an image with given bboxes and class labels (with scores).

Parameters

image (ndarray) – The image to be displayed, shaped (C, H, W) or (H, W, C), formatted RGB.
bboxes (ndarray) – Bounding boxes (with scores), shaped (N, 4) or (N, 5), data should be ordered with (N, x, y, w, h).
labels (ndarray) – Labels of bboxes, shaped (N, 1).
segm (ndarray) – The segmentation masks of image in M classes, shaped (M, H, W) (Default=None).
class_names (list[str], tuple[str], dict) – Names of each class to map label to class name (Default=None, only display label).
score_threshold (float) – Minimum score of bboxes to be shown (Default=0).
bbox_color (tuple(int)) – Color of bbox lines. The tuple of color should be in BGR order (Default=(0, 255 ,0), means ‘green’).
text_color (tuple(int)) – Color of texts. The tuple of color should be in BGR order (Default=(203, 192, 255), means ‘pink’).
mask_color (tuple(int)) – Color of mask. The tuple of color should be in BGR order (Default=(128, 0, 128), means ‘purple’).
thickness (int) – Thickness of lines (Default=2).
font_size (int, float) – Font size of texts (Default=0.8).
show (bool) – Whether to show the image (Default=True).
win_name (str) – The window name (Default=”win”).
wait_time (int) – Value of waitKey param (Default=2000, means display interval is 2000ms).
out_file (str, optional) – The filename to write the imagee (Default=None). File extension name is required to indicate the image compression type, e.g. ‘jpg’, ‘png’.

Returns

The image with bboxes drawn on it.

Return type

ndarray

Raises

ImportError – If opencv-python is not installed.
AssertionError – If image is not in (H, W, C) or (C, H, W) format.
AssertionError – If bboxes is not in (N, 4) or (N, 5) format.
AssertionError – If labels is not in (N, 1) format.
AssertionError – If segm is not in (M, H, W) format.
AssertionError – If class_names is not of type list, tuple or dict.
AssertionError – If bbox_color is not a tuple in format of (B, G, R).
AssertionError – If text_color is not a tuple in format of (B, G, R).
AssertionError – If mask_color is not a tuple in format of (B, G, R).

Examples

>>> import numpy as np
>>> import mindspore.dataset as ds
>>> from mindspore.dataset.utils.browse_dataset import imshow_det_bbox
>>>
>>> # Read Detection dataset, such as VOC2012.
>>> voc_dataset_dir = "/path/to/voc_dataset_directory"
>>> dataset = ds.VOCDataset(voc_dataset_dir, task="Detection", shuffle=False, decode=True, num_samples=5)
>>> dataset_iter = dataset.create_dict_iterator(output_numpy=True, num_epochs=1)
>>>
>>> # draw dataset
>>> for index, data in enumerate(dataset_iter):
...     image = data["image"]
...     bbox = data["bbox"]
...     label = data["label"]
...     # draw image with bboxes
...     imshow_det_bbox(image, bbox, label,
...                     class_names=['aeroplane', 'bicycle', 'bird', 'boat', 'bottle', 'bus', 'car', 'cat',
...                                  'chair', 'cow', 'diningtable', 'dog', 'horse', 'motorbike', 'person',
...                                  'pottedplant', 'sheep', 'sofa', 'train', 'tvmonitor'],
...                     win_name="my_window",
...                     wait_time=5000,
...                     show=True,
...                     out_file="voc_dataset_{}.jpg".format(str(index)))

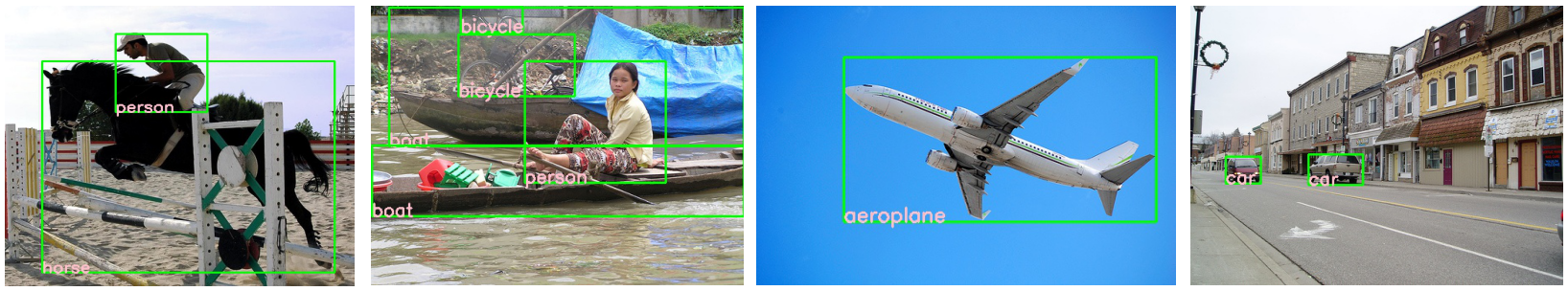

Examples using imshow_det_bbox on VOC2012:
