Using Online Debugger

View Source On Gitee

Overview

This article describes how to use Debugger in online mode.

Operation Process

  • Launch MindSpore Insight in debugger mode and wait for the training.

  • Set debugger environment variables and run the training script.

  • After the training is connected, set watchpoints on the MindSpore Insight Debugger UI.

  • Analyze the training progress on MindSpore Insight Debugger UI.

Debugger Environment Preparation

Launch MindSpore Insight in Debugger Mode

At first, install MindSpore Insight and launch it in debugger mode. MindSpore will send training information to MindSpore Insight Debugger Server in debugger mode, users can analyze the information on MindSpore Insight UI.

The command to launch MindSpore Insight in debugger mode is as follows:

mindinsight start --port {PORT} --enable-debugger True --debugger-port {DEBUGGER_PORT}

The Debugger related parameters:

Name

Argument

Description

Type

Default

Scope

--port {PORT}

Optional

Specifies the port number of the web visualization service.

Integer

8080

1~65535

--enable-debugger {ENABLE_DEBUGGER}

Optional

Should be set to True or 1, this will launch the MindSpore Insight debugger server; Default is False, not launch.

Boolean

False

True/False/1/0

--debugger-port {DEBUGGER_PORT}

Optional

Specifies the port number of the debugger server.

Integer

50051

1~65535

For more launch parameters, please refer to MindSpore Insight Commands.

Run the Training Script in Debug Mode

Run the training script in debug mode, you need to set export ENABLE_MS_DEBUGGER=1 or export ENABLE_MS_DEBUGGER=True to specify the training is in the debugger mode, and set the debugger host and port to which the training is connected: export MS_DEBUGGER_HOST=127.0.0.1 (the service address must be consistent with MindSpore Insight host address); export MS_DEBUGGER_PORT=50051 (the port must be consistent with MindSpore Insight debugger-port).

If the memory space of your equipment is limited, you can use the partial memory reuse mode before starting the training to reduce the running space: export MS_DEBUGGER_PARTIAL_MEM=1

In addition, do not use data offload mode during training (you need to set dataset_sink_mode in model.train to False) to ensure that the debugger can obtain the training information of each step.

After the environment and training script are prepared, run the training script.

Debugger UI Introduction

After the training is connected, you can view the training meta information such as a computational graph on the MindSpore Insight Debugger UI which consists of the computational graph, node list, node information, watchpoint list, watchpoint hit list, stack list, and stack information. The Debugger UI components are shown as follows.

debugger_init_page

Figure 1: The initial UI of debugger

Computational Graph

Debugger will display the optimized computational graph in the upper middle area of the page. Users can click the box (stand for one scope) to expand the graph, and analyze the nodes contained in that scope.

The area on the top shows the training metadata, such as the Client IP (address and port of the training script process), Device ID being used and the current training Step.

In the GPU environment, the Current Node and Next Node buttons are used to return to the current execution node and execute the next node, respectively and are displayed in the upper right corner of the computational graph area.

Node List

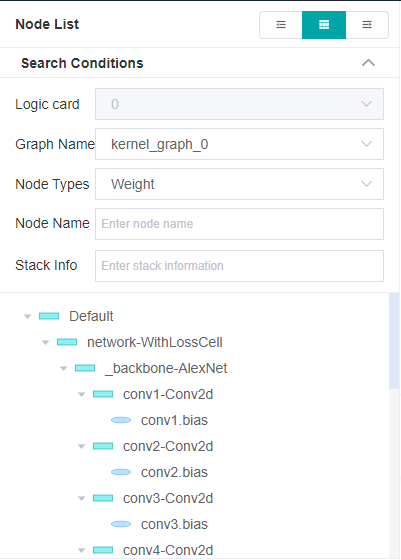

debugger_search_node_type

Figure 2: The node list filtered by node type

As shown in Figure 1, the computational graph Node List will be displayed on the left of the UI. The Node List can be expanded according to the scope of the nodes. When clicking one node in the list, the computational graph on the right will also be expanded and choose the corresponding node automatically.

You can filter nodes by Graph File and Node Type under Node List, as shown in Figure 2, and search for nodes by entering their names in the search box under Node Type.

Graph Node Details

After clicking a graph node, you can view its detailed information in the lower part of the UI, including the output and input, training steps (Step), as well as data types (DType), shapes (Shape), and values (Value) of a tensor, as shown in Figure 2. After clicking the Download in the Value column, tensor values can be download as .npy file, the default directory is Downloads folder.

In the GPU environment, select and right-click an executable graph node, and choose Run to This Node from the shortcut menu to run the training script to the selected node (no more than one step).

When the depth of the direct child node of a namespace or an aggregation node exceeds 70, the graph node page does not support expanding the node. To see the tensor relationship inside the node, you can turn to the tensor relationship diagram page via a node related to it, refer to the FAQ for details.

Anomaly Check List

The anomaly check list shows all the set anomaly check rules. Anomaly check rule, referred to as watchpoint.

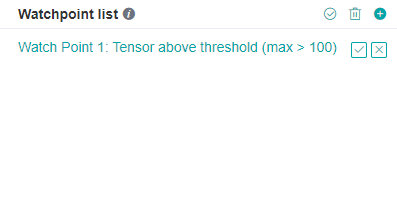

debugger_watch_point_list

Figure 3: The anomaly check list

As shown in Figure 3, the watchpoint list is in the lower left corner of the UI. The three icons from left to right in the upper right corner of the watchpoint list are used to recheck, clear, and create watchpoints.

Setting Watchpoints

debugger_set_watch_point

Figure 4: Creating watchpoint

To monitor and analyze the computation result of a node, you can set a watchpoint for the node in a computational graph. Figure 4 shows how to set a watchpoint. You can click the + icon in the upper right corner of the watchpoint list to add a watchpoint and select a check condition. For example, if you want to check whether a tensor is above the threshold, select a check condition, enter a threshold, and click OK to create a watchpoint. After a watchpoint is created, manually select the node to be checked and click next to the watchpoint. If you select Weight check, Gradient check, or Activation value check when creating a watchpoint, the weight, gradient, or activation node is automatically selected. You can manually change the selected node after clicking OK.

The following conditions are supported (abbreviations in parentheses):

  • Tensor check

    • Operator overflow (OO): Check whether overflow occurs during operator computation. Only the Ascend AI Processor is supported.

    • Whether tensor values are all 0 (TZ): Set the threshold to Percentage of 0 values to check the percentage of 0 tensor values.

    • Tensor overflow (TO): Check whether a tensor value overflow occurs.

    • Tensor value range (TR): Set a threshold to check the tensor value range. The options are Percentage of the value in the range >, Percentage of the value in the range <, MAX-MIN> and MAX-MIN<. If setting the threshold to Percentage of the value in the range > or Percentage of the value in the range <, you need to set the Upper limit of the range (inclusive) or Lower limit of the range (inclusive) at the same time.

    • Tensor above threshold (TL): Set a threshold to check whether the tensor value is too large. The options are Average of the absolute value >, max >, min >, and mean >.

    • Tensor below threshold (TS): Set a threshold to check whether the tensor value is too small. The options are Average of the absolute value <, max <, min <, and mean <.

  • Weight check

    • Weight change above threshold (WCL): Set a threshold to Average change ratio > to check whether the weight value change is too large.

      • Average change ratio = mean(abs(Current weight value - Weight value in previous step))/(mean(abs(Weight value in previous step)) + Offset).

    • Weight change below threshold (WCS): Set a threshold to Average change ratio < to check whether the weight value change is too small.

    • Initial weight value (WI): Set a threshold to check the initial weight value. The options are Percentage of 0 values , max >, and min <.

    • Unchanged weight (WNC): Set the threshold to Relative tolerance to check whether the weight is updated.

    • Weight overflow (WO): Check whether a weight value overflow occurs.

    • Weight above threshold (WL): Set a threshold to check whether the weight value is too large. The options are Average of the absolute value >, max >, min >, and mean >.

    • Weight below threshold (WS): Set a threshold to check whether the weight value is too small. The options are Average of the absolute value <, max <, min <, and mean <.

  • Activation value check

    • Activation value range (AR): Set a threshold to check the activation value range. The options are Percentage of the value in the range >, Percentage of the value in the range <, MAX-MIN> and MAX-MIN<. If setting the threshold to Percentage of the value in the range > or Percentage of the value in the range <, you need to set the Upper limit of the range (inclusive) or Lower limit of the range (inclusive) at the same time.

  • Gradient check

    • Gradient explosion (GE): Check whether a gradient value overflow occurs.

    • Gradient above threshold (GL): Set a threshold to check whether the gradient value is too large. The options are Average of the absolute value >, max >, min >, and mean >.

    • Gradient disappearance (GV): Set a threshold to check whether the gradient value is too small. The options are Average of the absolute value <, max <, min <, and mean <.

After a watchpoint is generated, you can select or deselect nodes to be monitored in the node list, as shown in Figure 3. In addition, you can click the clear watchpoint icon or X icon to delete watchpoints.

During training, the debugger analyzes the outputs of these monitored nodes in real time. Once the watchpoint conditions are hit, the training is suspended. You can view the information about the hit nodes on the UI.

debugger_watch_point_hit

Figure 5: Viewing hit nodes

The hit nodes are displayed on the left of the UI. If more than one watchpoints are set, UI can show the result of the specified watchpoint by choosing the watchpoint id in the watchpoint pull list. If the training network consists of more than one sub graphs, you can choose the sub graph name in the graph file pull list to show the results of the specified sub graph. For multi-card training, you can choose the logic card id in the logic card pull list to show the hit nodes on the specified card (Only for offline debugger, online debugger does not support distributed training at present).

In the same sub graph, the hit nodes are sorted based on the node execution sequence. On the left of the node name, click on the expand icon, the hit watchpoints and watchpoint condition will be displayed. Each record displays the configured threshold and the actual value. In addition, after you click a record, the corresponding node is displayed in the computational graph. You can view the node information to analyze the possible cause. Click View to enter the tensor check view. You can view the hit watchpoint information and optimization guide, as shown in Figure 8.

Stack List

You can click the switch button in the upper left corner on the debugger UI to switch from Node List or Watchpoint Hit List to Stack List.

You can view all stack information in the stack list. After you enter a keyword in the search box, the matched stack information is displayed. The list is displayed on multiple pages. You can click the page number at the bottom to quickly go to the corresponding page.

Click an item in the list to go to the node list where you can view the node related to the code.

debugger_stack_list

Figure 6: Stack list

Stack Information

When a node is located in the graph, click the Stack Info tab page below the graph to view the stack information related to the node.

On the Stack Info tab page, click Search in a row to search for all nodes related to the row. The search result is automatically displayed in the node list.

debugger_stack_info

Note: some operators are generated by the framework, such as TupleGetItem, Append, UpdateState, and so on. These operators may be associated with the code of the framework itself, or no code can be associated, which is normal.

Figure 7: Stack information

Recheck

To perform more detailed monitoring and analysis on a node, you can modify the node to be monitored, add or delete watchpoints, and then check the current step again. The recheck icon is in the upper right corner of the watchpoint list as shown in figure 3.

Training Control

At the bottom of the watchpoint setting panel is the training control panel, which shows the training control functions of the debugger, with four buttons: CONTINUE, PAUSE, TERMINATE and OK:

  • OK stands for executing the training for several steps, the number of the step can be specified in the above bar. The training will be paused until the Watch Point List is triggered, or the number of step is reached.

  • CONTINUE stands for executing the training until the Watch Point List is triggered, or the training is finished.

  • PAUSE stands for pausing the training.

  • TERMINATE stands for terminating the training.

Tensor Check View

Some tensors have too many dimensions and cannot be directly displayed on the home page. You can click the corresponding View button to view the detailed information about the tensor value on the displayed tensor check view.

debugger_tensor_view_heatmap

Figure 8: Viewing tensors value heatmap

As shown in Figure 8, the tensor check view displays the tensor values in the upper part of the UI, the default value is in chart mode, which can display the distribution of current values. When the mouse moves to a position on the chart, the specific value of current coordinates will be displayed. Select Table Mode in the Mode pull box below the thermodynamic diagram, the tensor value in the form of table would be displayed, as shown in Figure 9.

debugger_tensor_view

Figure 9: Viewing tensors value

In the tensor check view, you can set the Dimension Selection and click Current Step, Previous step, and Comparison Result to display and compare tensors. (Currently, the parameter node can be compared only with the previous one step.) In addition, you can set shards in Dimension Selection to display a tensor in the specified dimension.

The node information, current step, and statistics are displayed on the top of the view. The optimization guide is displayed on the left of the view. When a watchpoint is hit, the hit information and optimization suggestions are displayed. The tensor relationship diagram and detailed node information are displayed on the lower part of the view.

Based on the tensor relationship diagram, you can analyze which tensors are used to compute the current tensor and which constants are affected by the current tensor. Abbreviations of watchpoint conditions are displayed on the diagram, helping you quickly identify the propagation path of tensor issues. Each condition abbreviation can be found in “Setting Watchpoints”.

Tensors can be downloaded in tensor check view. Users can download the desired tensor for in-depth analysis or processing.

Debugger Usage Example

  1. Prepare the debugger environment, and open the MindSpore Insight Debugger UI.

    debugger_waiting

    Figure 10: Debugger Start and Waiting for the Training

    The Debugger server is launched and waiting for the training to connect.

  2. Run the training script on terminal.

  3. Wait for a moment. A dialog box is displayed on the MindSpore Insight UI, asking you whether to use the recommended watchpoints, as shown in the following figure.

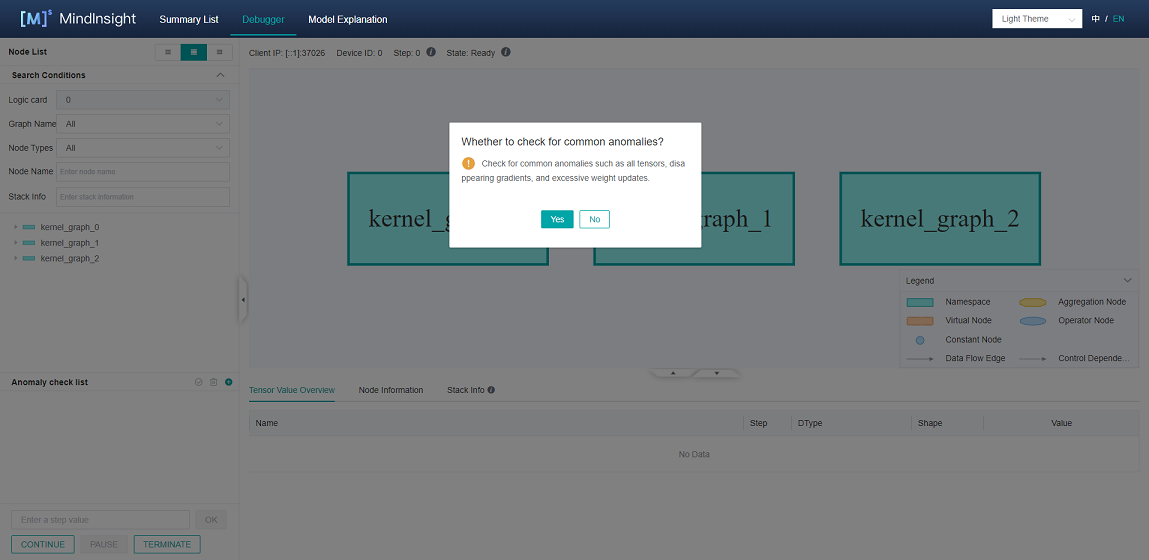

    debugger_ask_recommend

    Figure 11: Debugger ask whether to use the recommended watchpoints

  4. Later, you can see that the computational graph is displayed on the Debugger UI, as shown in Figure 1.

  5. Set watchpoints.

    Select the watchpoint conditions, as shown in Figure 4. Select or deselect certain nodes as shown in Figure 3. The debugger monitors whether outputs that meet the watchpoint conditions exist during the node computation process. After setting the watchpoints, you can set step and click OK, or just click CONTINUE to continue the training.

  6. Trigger watchpoints, as shown in Figure 5.

    After watchpoints are hit, you can view the corresponding node information and stack information, find the exception cause on the tensor check view, or download the tensor to analyse the exception, and modify the script to rectify the fault.

Notices

  • Scenarios:

    • The debugger does not support distributed training scenarios.

    • The debugger does not support inference scenarios.

    • The debugger does not support the single-node multi-device or cluster scenario.

    • The debugger does not support connected to multiple training process.

    • The debugger does not support CPU scenarios.

    • The debugger does not support PyNative mode.

    • The debugger does not support multi networks scenarios.

  • Impact on Performance:

    • Debugger will slow down the training performance.

    • When too many Watch Points are set, the system may run out of memory.

  • GPU Scenario:

    • In the GPU scenario, only the parameter nodes that meet requirements can be compared with the previous step. For example, nodes executed on the next node, nodes selected when Run to This Node is chosen, and nodes input as watchpoints can be compared. In other cases, the Compare with Previous Step function cannot be used.

  • When using the debugger, make sure that the version numbers of MindSpore Insight and MindSpore are the same.

  • Recheck only watchpoints that have tensor values.

  • To check overflow during computation, you need to enable the overflow detection function of the asynchronous dump. For details about how to enable the function, see Asynchronous Dump.

  • The graph displayed by the debugger is the finally optimized execution graph. The called operator may have been integrated with other operators, or the name of the called operator is changed after optimization.

  • Enabling the debugger will turn off memory reuse mode, which may lead to an ‘out of memory’ error when the training network is too large.
