构建可并行的大语言模型网络

在过去几年中，随着深度学习技术的迅速发展，尤其是大规模预训练模型（如GPT、LLaMA以及盘古等）的出现，人工智能领域取得了巨大的进步。然而，随着模型规模的不断扩展，这些大模型所需的计算资源，特别是显存需求，呈指数级增长。以盘古71B为例，在半精度（FP16）下，这些参数本身就需要约142GB的显存。同时大模型日益膨胀的序列长度也给显存带了极大的压力。 显存不仅影响了模型的加载，还限制了批处理（batch size）较小的批处理可能会降低推理效率的下降，进而影响整个系统的吞吐量。

显存的压力使得单一设备很难在合理时间内完成推理任务，并行计算成为应对这一挑战的关键。

模型并行

当模型参数量过大，超出单个设备的显存容量时，模型并行能够将模型的不同部分分配到多个设备上运行。这种方法有效降低了单一设备的显存需求，并允许更大规模的模型推理。

基础矩阵乘模块

在大模型计算中，矩阵乘（MatMul）不管是在权重还是计算量上都占了相当大的比例。观察矩阵乘，其拥有列可切分性（Column-wise Parallelism）和行可切分性（Row-wise Parallelism）。

以MindSpore原始实现的nn.Dense为起点，分别构建列切和行切的矩阵乘实现。

1. 通信域的创建和管理，大模型配置的管理 构建CommunicationHelper类管理模型并行的域。

   from mindspore.communication import create_group, get_group_size


   class CommunicationHelper:
       def __init__(self, group_name, size):
           self.group_name = group_name
           self.size = size
           self.rank_list = [i for i in range(size)]

       def create_tensor_model_parallel_group(self):
           create_group(group=self.group_name, rank_ids=self.rank_list)

       def get_tensor_model_paralell_group_size(self):
           return get_group_size(group=self.group_name)

       def get_tensor_model_parallel_group(self):
           return self.group_name


   构建ConfigHelper管理并配置大模型参数。

   class ConfigHelper:
       def __init__(self,
                    vocab_size,
                    hidden_size,
                    ffn_hidden_size,
                    num_layers,
                    batch_size,
                    seq_length, dtype,
                    num_heads,
                    has_bias=False):
           self.vocab_size = vocab_size
           self.hidden_size = hidden_size
           self.ffn_hidden_size = ffn_hidden_size
           self.num_layers = num_layers
           self.batch_size = batch_size
           self.seq_length = seq_length
           self.dtype = dtype
           self.num_heads = num_heads
           self.has_bias = has_bias


2. 列切矩阵乘 ColumnParallelLinear类，在通过模型并行的设备数计算切分后的权重shape并初始化，列切是切分out_channels；在模型前向，调用矩阵乘计算出并行的结果；最后可以选择对并行的结果进行AllGather，以得到完整的输出。

   MindSpore训推一体框架支持开启infer_boost，该参数会使MS框架开启高性能自研算子库。启动该模式需要：

   • 设置变量：

   from mindspore import set_context
   set_context(jit_config={"jit_level": 'O0', "infer_boost": 'on'})


   • 设置系统环境变量：

   export ASCEND_HOME_PATH={$ascend_custom_path}


   以模型并行device数是2时为例，设置环境变量和初始化通信组，并配置大模型参数config。

   from mindspore import nn, Parameter, ops, Tensor
   from mindspore.common import dtype as mstype
   from mindspore.communication import init
   from mindspore.common.initializer import initializer
   import numpy as np

   from mindspore import set_context
   set_context(jit_config={"jit_level": 'O0', "infer_boost": 'on'})

   TP_GROUP_NAME='tp'
   TP_SIZE = 2
   COMMUN_HELPER = CommunicationHelper(group_name=TP_GROUP_NAME, size=TP_SIZE)

   init()
   COMMUN_HELPER.create_tensor_model_parallel_group()

   config = ConfigHelper(batch_size=64,
                         vocab_size=32000,
                         num_layers=4,
                         seq_length=2048,
                         hidden_size=1024,
                         ffn_hidden_size=4096,
                         dtype=mstype.float16,
                         num_heads=8,
                         has_bias=False)


   列切矩阵乘模块

   class ColumnParallelLinear(nn.Cell):
       def __init__(self,
                    in_channels,
                    out_channels,
                    weight_init=None,
                    bias_init=None,
                    has_bias=True,
                    dtype=mstype.float32):
           super().__init__()
           self.in_channels = in_channels
           self.out_channels = out_channels
           self.has_bias = has_bias
           self.tensor_parallel_group_size = COMMUN_HELPER.get_tensor_model_paralell_group_size()
           self.out_channels_per_partition = out_channels // self.tensor_parallel_group_size
           self.dtype = dtype
           weight_shape = (self.out_channels_per_partition, self.in_channels)
           self.weight = Parameter(initializer(weight_init, weight_shape, self.dtype), name="weight")
           if self.has_bias:
               self.bias = Parameter(initializer(bias_init, (self.out_channels_per_partition), self.dtype), name="bias")
               self.bias_add = ops.Add()
           self.matmul = ops.BatchMatMul(transpose_b=True)
           self.cast = ops.Cast()

       def construct(self, x):
           origin_dtype = x.dtype
           x = self.cast(x, self.dtype)
           out = self.matmul(x, self.weight)
           if self.has_bias:
               output_parallel = self.bias_add(
                   output_parallel, self.cast(self.bias, self.dtype)
               )
           out = self.cast(out, origin_dtype)
           return out


   列切矩阵乘法的输出是并行的，若需要得到完整的输出，可通过GatherLastDim得到。

   class GatherLastDim(nn.Cell):
       def __init__(self):
           super().__init__()
           self.all_gather = ops.AllGather(group=COMMUN_HELPER.get_tensor_model_parallel_group())
           self.world_size = COMMUN_HELPER.get_tensor_model_paralell_group_size()
           self.split = ops.Split(axis=0, output_num=self.world_size)

       def construct(self, input_):
           output = self.all_gather(input_)
           tensor_list = self.split(output)
           output = ops.cat(tensor_list, axis=-1)
           return output


   列切矩阵乘法的推理：

   column_parallel_linear = ColumnParallelLinear(in_channels=config.hidden_size,
                                                 out_channels=config.hidden_size,
                                                 weight_init='normal',
                                                 dtype=config.dtype,
                                                 has_bias=False)
   input_x = Tensor(np.random.randn(config.batch_size, config.seq_length, config.hidden_size).astype(np.float32))
   out_parallel = column_parallel_linear(input_x)
   print(out_parallel.shape)

   gather_last_dim = GatherLastDim()
   out = gather_last_dim(out_parallel)
   print(out.shape)


3. 行切矩阵乘

   与列切相同，RowParallelLinear根据模型并行域的大小切分权重；在初始化时，切分方向是行，因此切分in_channels维度后初始化；在模型前向，输入与权重进行矩阵乘后，需要对所有device上的结果进行AllReduce

   行切矩阵乘模块实现如下：

   class RowParallelLinear(nn.Cell):
       def __init__(self,
                    in_channels,
                    out_channels,
                    weight_init='normal',
                    bias_init=None,
                    has_bias=True,
                    dtype=mstype.float32):
           super().__init__()
           self.in_channels = in_channels
           self.out_channels = out_channels
           self.has_bias = has_bias
           self.tensor_parallel_group_size = COMMUN_HELPER.get_tensor_model_paralell_group_size()
           self.in_channels_per_partition = in_channels // self.tensor_parallel_group_size
           self.dtype = dtype
           weight_shape = (self.out_channels, self.in_channels_per_partition)
           self.weight = Parameter(initializer(weight_init, weight_shape, self.dtype), name="weight")
           if self.has_bias:
               self.bias = Parameter(initializer(bias_init, (self.in_channels_per_partition), self.dtype), name="bias")
               self.bias_add = ops.Add()
           self.bmm = ops.BatchMatMul(transpose_b=True)
           self.all_reduce = ops.AllReduce(group=COMMUN_HELPER.get_tensor_model_parallel_group())
           self.cast = ops.Cast()

       def construct(self, x):
           origin_dtype = x.dtype
           x = self.cast(x, self.dtype)
           out = self.bmm(x, self.weight)
           if self.has_bias:
               output_parallel = self.bias_add(output_parallel, self.cast(self.bias, self.dtype))
           out = self.all_reduce(out)
           out = self.cast(out, origin_dtype)
           return out


   行切矩阵乘法的推理：

   row_parallel_linear = RowParallelLinear(in_channels=config.hidden_size,
                                           out_channels=config.hidden_size,
                                           weight_init='normal',
                                           dtype=config.dtype,
                                           has_bias=False)
   out = row_parallel_linear(out_parallel)
   print(out.shape)


4. Embedding 除了矩阵乘之外，Embedding层也可以进行并行计算。将Embedding权重切分多若干个device上，每个device负责映射不同范围token_ids。

   具体而言

   以nn.Embedding为基础，构建模型并行的Embedding层：

    class VocabParallelEmbedding(nn.Cell):
        def __init__(self,
                     num_embeddings,
                     embedding_dim,
                     init_method="normal",
                     init_type=mstype.float32):
            super().__init__()
            self.num_embeddings = num_embeddings
            self.embedding_dim = embedding_dim
            self.tensor_model_parallel_size = COMMUN_HELPER.get_tensor_model_paralell_group_size()
            per_partition_vocab_size = self.num_embeddings // self.tensor_model_parallel_size
            self.vocab_start_index = COMMUN_HELPER.get_tensor_model_paralell_group_rank() * per_partition_vocab_size
            self.vocab_end_index = self.vocab_start_index + per_partition_vocab_size
            self.num_embeddings_per_partition = (
                self.vocab_end_index - self.vocab_start_index
            )
            self.embedding_weight = Parameter(
                initializer(
                    init=init_method,
                    shape=(self.num_embeddings_per_partition, self.embedding_dim),
                    dtype=init_type,
                ),
                name="embedding_weight",
            )
            self.all_reduce = ops.AllReduce(group=COMMUN_HELPER.get_tensor_model_parallel_group())
            self.max_index_per_partition = Tensor(self.num_embeddings_per_partition - 1, dtype=mstype.int32)
            self.expand_dims = ops.ExpandDims()
            self.gather = ops.Gather()
            self.sub = ops.Sub()
            self.relu = ops.ReLU()
            self.minimum = ops.Minimum()
            self.eq = ops.Equal()
            self.mul = ops.Mul()

        def construct(self, x):
            displaced_x = self.sub(x, self.vocab_start_index)
            down_truncated_x = self.relu(displaced_x)
            truncated_x = self.minimum(down_truncated_x, self.max_index_per_partition)
            input_mask = self.eq(displaced_x, truncated_x)
            input_mask = self.expand_dims(input_mask, -1)
            output_parallel = self.gather(self.embedding_weight, truncated_x, 0)
            output_parallel = self.mul(output_parallel, input_mask)
            output = self.all_reduce(output_parallel)
            return output


   并行Embedding推理：

   input_ids = np.random.randint(0, config.vocab_size, size=(config.batch_size, config.seq_length), dtype=np.int32)
   input_ids = Tensor(input_ids)

   embedding_output = vocab_parallel_embedding(input_ids)
   print(embedding_output.shape)


TransformerModel并行适配

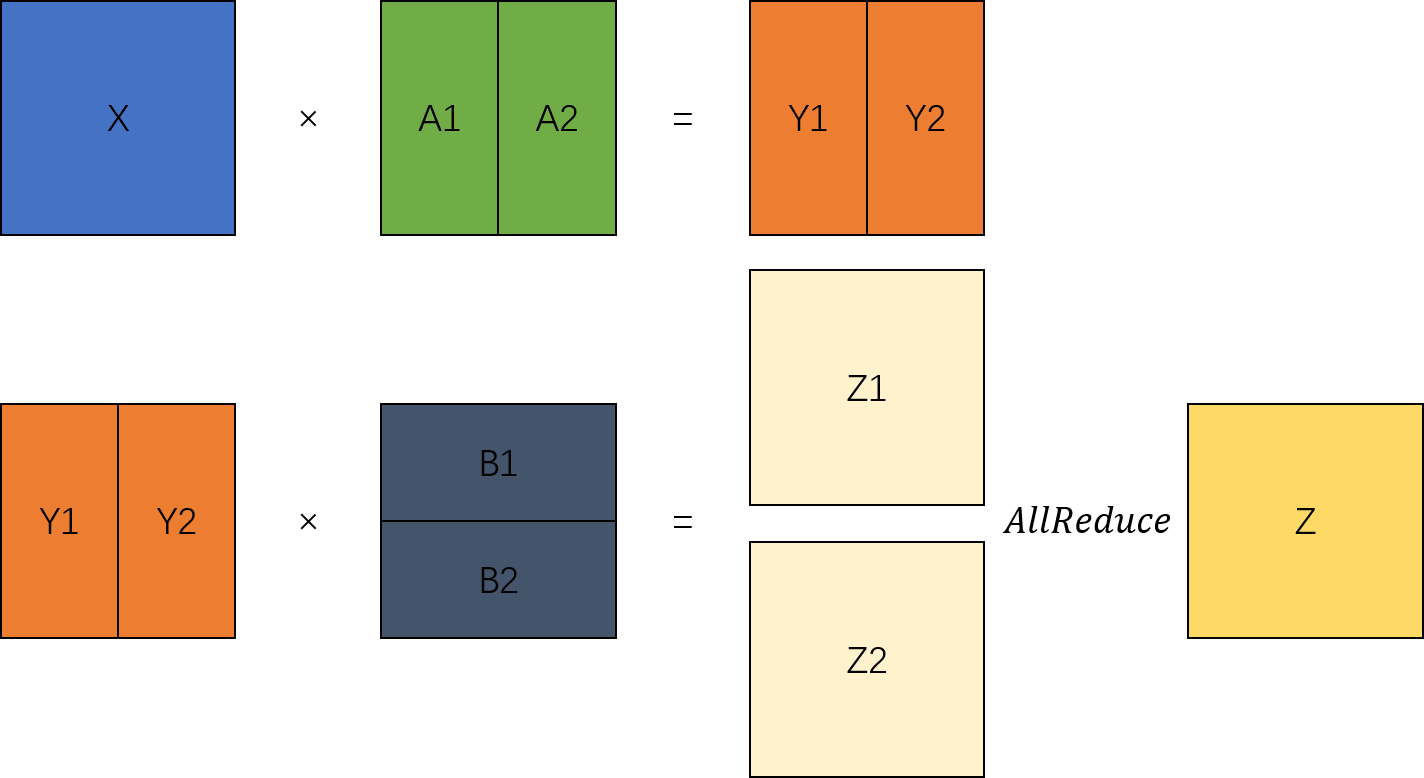

可以看出张量按顺序，先经过ColumnParallelLinear列切矩阵乘得到并行的结果，然后输入RowParallelLinear行切矩阵乘，就能得到完整的两次矩阵乘结果。

根据以上的分析，可以将模型构建中构建的TransformerModel模型修改为支持并行切分的模型结构。

1. Attention

   以MHA(Multi Head Attention)为例，Transformer中典型的Attention模块是多头的，每个注意力头相互独立，因此在保证单个注意力头完整的情况下，激活值在hidden_size的维度是可切。如假设一个MHA的头数num_heads是16，每个头的维度head_dim是256，hidden_size就是4096，计算Q/K/V的Linear的in/out都是4096。当模型并行tensor_model_parallel=4时，这些Linear被切分到4个device，每个device(4096,1024)，等于每个device计算4个头。



   Attention模块编码示例：

   class ParallelAttention(nn.Cell):
       def __init__(self, config):
           super().__init__()
           self.tensor_model_parallel_size = COMMUN_HELPER.get_tensor_model_paralell_group_size()
           self.num_heads_per_partition = config.num_heads // self.tensor_model_parallel_size
           self.head_dim = config.hidden_size // config.num_heads
           self.norm_factor = math.sqrt(self.head_dim)
           self.q = ColumnParallelLinear(in_channels=config.hidden_size,
                                         out_channels=config.hidden_size,
                                         weight_init='normal',
                                         has_bias=config.has_bias)
           self.k = ColumnParallelLinear(in_channels=config.hidden_size,
                                         out_channels=config.hidden_size,
                                         weight_init='normal',
                                         dtype=config.dtype,
                                         has_bias=config.has_bias)
           self.v = ColumnParallelLinear(in_channels=config.hidden_size,
                                         out_channels=config.hidden_size,
                                         weight_init='normal',
                                         dtype=config.dtype,
                                         has_bias=config.has_bias)
           self.flash_attention = ops.operations.nn_ops.FlashAttentionScore(head_num=self.num_heads_per_partition,
                                                                           scale_value=1.0/self.norm_factor,
                                                                           next_tokens=0)
           self.out = RowParallelLinear(in_channels=config.hidden_size,
                                        out_channels=config.hidden_size,
                                        weight_init='normal',
                                        dtype=config.dtype,
                                        has_bias=config.has_bias)

       def construct(self, x, mask):
           query = self.q(x)
           key = self.k(x)
           value = self.v(x)
           _, _, _, context_layer = self.flash_attention(query, key, value, attn_mask=mask)
           output = self.out(context_layer)
           return output


2. MLP

   MLP模块其实是2个全连接层，也可以使用矩阵乘的并行切分来处理，具体代码如下：

   class ParallelMLP(nn.Cell):
       def __init__(self, config):
           super().__init__()
           self.w1 = ColumnParallelLinear(in_channels=config.hidden_size,
                                          out_channels=config.ffn_hidden_size,
                                          weight_init='normal',
                                          dtype=config.dtype,
                                          has_bias=config.has_bias)
           self.w2 = RowParallelLinear(in_channels=config.ffn_hidden_size,
                                       out_channels=config.hidden_size,
                                       weight_init='normal',
                                       dtype=config.dtype,
                                       has_bias=config.has_bias)
           self.act_func = nn.SiLU()
           self.mul = ops.Mul()

       def construct(self, x):
           x = self.w1(x)
           x = self.act_func(x)
           output = self.w2(x)
           return output


3. TransformerLayer

   TransformerLayer层由Attention和MLP构成，由于没有可并行的单算子，只需要将并行参数透传给Attention和MLP即可。

   class ParallelTransformerLayer(nn.Cell):
       def __init__(self, config):
           super().__init__()
           self.attention = ParallelAttention(config=config)
           self.feed_forward = ParallelMLP(config=config)
           self.attention_norm = RMSNorm(dim=config.hidden_size, dtype=config.dtype)
           self.ffn_norm = RMSNorm(dim=config.hidden_size, dtype=config.dtype)
           self.add = ops.Add()

       def construct(self, x, mask):
           norm_output = self.attention_norm(x)
           attention_output = self.attention(norm_output, mask)
           norm_input = self.add(x, attention_output)
           norm_output = self.ffn_norm(norm_input)
           mlp_output = self.feed_forward(norm_output)
           output = self.add(norm_input, mlp_output)
           return output


4. TransformerModel

   class ParallelTransformer(nn.Cell):
       def __init__(self, config):
           super().__init__()
           self.embedding = VocabParallelEmbedding(num_embeddings=config.vocab_size,
                                                   embedding_dim=config.hidden_size,
                                                   init_method='normal',
                                                   init_type=config.dtype)
           self.layers = nn.CellList()
           self.num_layers = config.num_layers
           for _ in range(config.num_layers):
               layer = ParallelTransformerLayer(config=config)
               self.layers.append(layer)
           self.norm_out = RMSNorm(dim=config.hidden_size, dtype=config.dtype)

       def construct(self, x, mask):
           hidden_state = self.embedding(x)
           for i in range(self.num_layers):
               hidden_state = self.layers[i](hidden_state, mask)
           hidden_state = self.norm_out(hidden_state)
           return hidden_state


具体端到端的大语言模型代码工程可以参考model_dev.py脚本，运行下面命令进行验证：

msrun --worker_num 2 --local_worker_num 2 --master_port 8124 --log_dir msrun_log --join True --cluster_time_out 300 model_dev.py
