Illustration Of Vision Transforms

This example illustrates the various transforms available in the mindspore.dataset.vision module.

Preparation

from download import download
import matplotlib.pyplot as plt
from matplotlib.patches import Rectangle
from PIL import Image
import numpy as np

import mindspore.dataset as ds
import mindspore.dataset.vision as vision
import mindspore.common.dtype as dtype

# Download opensource datasets
url = "https://mindspore-website.obs.cn-north-4.myhuaweicloud.com/notebook/datasets/flamingos.jpg"
download(url, './flamingos.jpg', replace=True)
orig_img = Image.open('flamingos.jpg')

# Env set for randomness and prepare plot function
ds.config.set_seed(66)

def plot(imgs, bbox_list=None, first_origin=True, **kwargs):
    num_rows = 1
    num_cols = len(imgs) + first_origin

    _, axs = plt.subplots(nrows=num_rows, ncols=num_cols, squeeze=False)
    if first_origin:
        imgs = [orig_img] + imgs
    for idx, img in enumerate(imgs):
        ax = axs[0, idx]
        if isinstance(img, np.ndarray) and img.shape[0] in [1, 3]:
            img = img.transpose(1, 2, 0)
        ax.imshow(img, **kwargs)
        ax.set(xticklabels=[], yticklabels=[], xticks=[], yticks=[])

        if bbox_list:
            for bbox in bbox_list[idx]:
                rect = Rectangle((bbox[0], bbox[1]), bbox[2]-bbox[0], bbox[3]-bbox[1], linewidth=2, edgecolor='g', facecolor='none')
                ax.add_patch(rect)

    if first_origin:
        axs[0, 0].set(title='Original image')
        axs[0, 0].title.set_size(8)
    plt.tight_layout()

Downloading data from https://mindspore-website.obs.cn-north-4.myhuaweicloud.com/notebook/datasets/flamingos.jpg (45 kB)

file_sizes: 100%|███████████████████████████| 45.8k/45.8k [00:00<00:00, 163kB/s]
Successfully downloaded file to ./flamingos.jpg

Geometric Transforms

Geometric image transformation refers to the process of altering the geometric properties of an image, such as its shape, size, orientation, or position. It involves applying mathematical operations to the image pixels or coordinates to achieve the desired transformation.

Pad

The mindspore.dataset.vision.Pad transform pads the borders of image with some pixels.

padded_imgs = [vision.Pad(padding=padding)(orig_img) for padding in (3, 10, 30, 50)]
plot(padded_imgs)

PadToSize

The mindspore.dataset.vision.PadToSize transform pads the input image to the specified size.

pad_to_size = [vision.PadToSize(size=size, fill_value=255, padding_mode=vision.Border.EDGE)(orig_img) for size in (500, 600, 700)]
plot(pad_to_size)

Perspective

The mindspore.dataset.vision.Perspective transform applies a perspective transformation to the input image.

start_points = [[0, 0], [255, 0], [0, 255], [255, 255]]
end_points = [[20, 30], [235, 25], [15, 220], [240, 230]]

perspective = vision.Perspective(start_points=start_points, end_points=end_points, interpolation=vision.Inter.BICUBIC)
imgs = [perspective(orig_img)]
plot(imgs)

Resize

The mindspore.dataset.vision.Resize transform resizes an image to a given size. Uses the given mindspore.dataset.vision.Inter interpolation method to resize the input image to the given size.

resized_imgs = [vision.Resize(size=size)(orig_img) for size in (30, 50, 100)]
plot(resized_imgs)

Crop

The mindspore.dataset.vision.Crop transform crops the input image.

crop = vision.Crop(coordinates=(180, 180), size=64)
imgs = [crop(orig_img)]
plot(imgs)

ResizedCrop

The mindspore.dataset.vision.ResizedCrop crops and resizes the input image.

resize_crop = [vision.ResizedCrop(125, 100, 125, 100, size=size)(orig_img) for size in (30, 50, 100)]
plot(resize_crop)

Rotate

The mindspore.dataset.vision.Rotate transform rotates the input image.

rotate = vision.Rotate(degrees=-45, resample=vision.Inter.BILINEAR, expand=True, center=None, fill_value=125)
imgs = [rotate(orig_img)]
plot(imgs)

VerticalFlip

The mindspore.dataset.vision.VerticalFlip transform flips the input image vertically.

vertical_flip = vision.VerticalFlip()
imgs = [vertical_flip(orig_img)]
plot(imgs)

CenterCrop

The mindspore.dataset.vision.CenterCrop transform crops the image at the center.

center_crops = [vision.CenterCrop(size=size)(orig_img) for size in (30, 50, 100)]
plot(center_crops)

FiveCrop

The mindspore.dataset.vision.FiveCrop transform crops the given image into one central crop and four corners.

(top_left, top_right, bottom_left, bottom_right, center) = vision.FiveCrop(size=(100, 100))(orig_img)
plot([top_left, top_right, bottom_left, bottom_right, center])

RandomPerspective

The mindspore.dataset.vision.RandomPerspective transform performs random perspective transform on an image.

perspective_transformer = vision.RandomPerspective(distortion_scale=0.6, prob=1.0)
perspective_imgs = [perspective_transformer(orig_img) for _ in range(4)]
plot(perspective_imgs)

RandomRotation

The mindspore.dataset.vision.RandomRotation transform rotates an image with random angle.

rotater = vision.RandomRotation(degrees=(0, 180))
rotated_imgs = [rotater(orig_img) for _ in range(4)]
plot(rotated_imgs)

RandomAffine

The mindspore.dataset.vision.RandomAffine transform performs random affine transform on an image.

affine_transformer = vision.RandomAffine(degrees=(30, 70), translate=(0.1, 0.3), scale=(0.5, 0.75))
affine_imgs = [affine_transformer(orig_img) for _ in range(4)]
plot(affine_imgs)

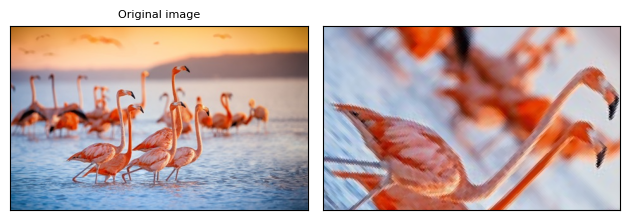

Affine

The mindspore.dataset.vision.Affine transform applies an affine transformation to the input image and the center of the image is fixed.

augmenter = vision.Affine(degrees=45, translate=[0.5, 0.5], scale=3.0, shear=0.5)
imgs = [augmenter(orig_img)]
plot(imgs)

RandomCrop

The mindspore.dataset.vision.RandomCrop transform crops an image at a random location.

cropper = vision.RandomCrop(size=(128, 128))
crops = [cropper(orig_img) for _ in range(4)]
plot(crops)

RandomCropDecodeResize

The mindspore.dataset.vision.RandomCropDecodeResize transform performs random cropping, decoding, and resizing on the input image.

img_to_ndarray = vision.ToNumpy()
img = img_to_ndarray(orig_img)
encode_img = vision.encode_jpeg(img, 75)
random_crop = vision.RandomCropDecodeResize(size=224, scale=(0.08, 1.0), ratio=(0.75, 1.333), interpolation=vision.Inter.LINEAR)
imgs = [random_crop(encode_img)]
plot(imgs)

RandomCropWithBBox

The mindspore.dataset.vision.RandomCropWithBBox transform performs a random crop on the input image and bounding box.

bboxes = np.array([[50, 50, 125, 125]], dtype=np.float32)
crop_bbox = vision.RandomCropWithBBox(size=300, padding=8, pad_if_needed=False, fill_value=(0, 0, 125), padding_mode=vision.Border.REFLECT)
imgs, bbox = crop_bbox(orig_img, bboxes)
plot([imgs], [bboxes, bbox])

RandomResizedCrop

The mindspore.dataset.vision.RandomResizedCrop transform crops an image at a random location, and then resizes the crop to a given size.

resize_cropper = vision.RandomResizedCrop(size=(32, 32))
resized_crops = [resize_cropper(orig_img) for _ in range(4)]
plot(resized_crops)

Photometric Transforms

Photometric image transformation refers to the process of modifying the photometric properties of an image, such as its brightness, contrast, color, or tone. These transformations are applied to change the visual appearance of an image while preserving its geometric structure.

AdjustBrightness

The mindspore.dataset.vision.AdjustBrightness transform adjusts the brightness of the input image.

adjust_brightness = [vision.AdjustBrightness(brightness_factor=factor)(orig_img) for factor in (0.5, 1.5, 2.0)]
plot(adjust_brightness)

AdjustContrast

The mindspore.dataset.vision.AdjustContrast transform adjusts the contrast of the input image.

adjust_contrast = [vision.AdjustContrast(contrast_factor=factor)(orig_img) for factor in (0.5, 1.5, 2.0)]
plot(adjust_contrast)

AdjustHue

The mindspore.dataset.vision.AdjustHue transform adjusts the hue of the input image.

adjust_hue = [vision.AdjustHue(hue_factor=factor)(orig_img) for factor in (-0.2, 0.5, 0.1)]
plot(adjust_hue)

AdjustGamma

The mindspore.dataset.vision.AdjustGamma transform applies a gamma correction to the input image according to the given gamma value.

adjust_gamma = vision.AdjustGamma(gamma=3.0, gain=2)
imgs = [adjust_gamma(orig_img)]
plot(imgs)

AdjustSaturation

The mindspore.dataset.vision.AdjustSaturation transform adjusts the saturation of the input image.

adjust_saturation = [vision.AdjustSaturation(saturation_factor=factor)(orig_img) for factor in (.0, 0.5, 2.0)]
plot(adjust_saturation)

AdjustSharpness

The mindspore.dataset.vision.AdjustSharpness transform adjusts the sharpness of the input image.

adjust_sharpness = [vision.AdjustSharpness(sharpness_factor=factor)(orig_img) for factor in (0.5, 1.5, 2.0)]
plot(adjust_sharpness)

ConvertColor

The mindspore.dataset.vision.ConvertColor transform converts the color space of the input image.

convert_color = vision.ConvertColor(convert_mode=vision.ConvertMode.COLOR_RGB2GRAY)
imgs = [convert_color(orig_img)]
plot(imgs)

Normalize

The mindspore.dataset.vision.Normalize transform normalizes the input image with with:\(output[channel] = \frac{input[channel] - mean[channel]}{std[channel]} \quad for \quad channel \geq 1\).

normalize = vision.Normalize(mean=[121.0, 115.0, 100.0], std=[70.0, 68.0, 71.0], is_hwc=True)
normalized_img = normalize(orig_img)
plot([normalized_img])

NormalizePad

The mindspore.dataset.vision.NormalizePad transform normalizes the input image with mean and standard deviation, and then pads the image.

normalized_pad = vision.NormalizePad(mean=[121.0, 115.0, 100.0], std=[70.0, 68.0, 71.0], dtype="float32")
normalized_pad_img = normalized_pad(orig_img)
plot([normalized_pad_img])

Equalize

The mindspore.dataset.vision.Equalize transform equalizes the histogram of the input image.

equalize = vision.Equalize()
imgs = [equalize(orig_img)]
plot(imgs)

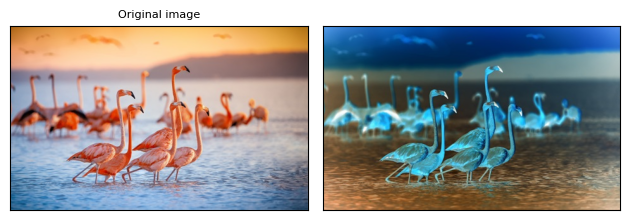

Invert

The mindspore.dataset.vision.Invert transform inverts the input image. Changes the value of each channel of the RGB value from x to 255-x.

invert = vision.Invert()
imgs = [invert(orig_img)]
plot(imgs)

Posterize

The mindspore.dataset.vision.Posterize transform reduces the number of bits for each color channel to obtain a poster-style image.

posterize = [vision.Posterize(bits=bits)(orig_img) for bits in (2, 6, 8)]
plot(posterize)

Rescale

The mindspore.dataset.vision.Rescale transform rescales the input image.

rescale = vision.Rescale(1.0 / 128.0, -1.0)
rescaled_img = rescale(orig_img)
plot([rescaled_img])

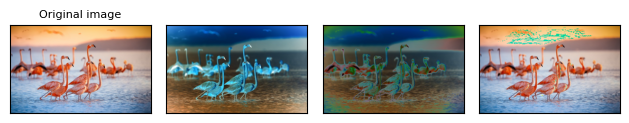

Solarize

The mindspore.dataset.vision.Solarize transform inverts all pixel values above a threshold. Given pixel thresholds min and max, invert all pixel values ​​within the thresholds [min, max] to expose the input image as expected.

solarize = [vision.Solarize(threshold=threshold)(orig_img) for threshold in (0, 128.0, 255.0)]
plot(solarize)

Grayscale

The mindspore.dataset.vision.Grayscale transform converts an image to grayscale.

gray_img = vision.Grayscale()(orig_img)
plot([gray_img], cmap='gray')

RandomGrayscale

The mindspore.dataset.vision.RandomGrayscale transform randomly converts an image to grayscale with a given probability.

random_grayscale = vision.RandomGrayscale(prob=0.5)
grayscale_img = random_grayscale(orig_img)
plot([grayscale_img])

RandomColorAdjust

The mindspore.dataset.vision.RandomColorAdjust transform randomly changes the brightness, contrast, saturation and hue of the input image.

jitter = vision.RandomColorAdjust(brightness=.5, hue=.3)
jitted_imgs = [jitter(orig_img) for _ in range(4)]
plot(jitted_imgs)

GaussianBlur

The mindspore.dataset.vision.GaussianBlur transform performs gaussian blur transform on an image.

blurrer = vision.GaussianBlur(kernel_size=(5, 9), sigma=(0.1, 5))
blurred_imgs = [blurrer(orig_img) for _ in range(4)]
plot(blurred_imgs)

RandomInvert

The mindspore.dataset.vision.RandomInvert transform randomly inverts the colors of the given image.

inverter = vision.RandomInvert()
invertered_imgs = [inverter(orig_img) for _ in range(4)]
plot(invertered_imgs)

RandomPosterize

The mindspore.dataset.vision.RandomPosterize transform randomly reduces the bit depth of the color channels of image to create a high contrast and vivid color image.

posterizer = vision.RandomPosterize(bits=2)
posterized_imgs = [posterizer(orig_img) for _ in range(4)]
plot(posterized_imgs)

RandomSolarize

The mindspore.dataset.vision.RandomSolarize transform randomly solarizes the image by inverting pixel values within specified threshold.

solarizer = vision.RandomSolarize(threshold=(0, 192))
solarized_imgs = [solarizer(orig_img) for _ in range(4)]
plot(solarized_imgs)

RandomAdjustSharpness

The mindspore.dataset.vision.RandomAdjustSharpness transform randomly adjusts the sharpness of the given image.

sharpness_adjuster = vision.RandomAdjustSharpness(degree=2)
sharpened_imgs = [sharpness_adjuster(orig_img) for _ in range(4)]
plot(sharpened_imgs)

RandomAutoContrast

The mindspore.dataset.vision.RandomAutoContrast transform randomly applies autocontrast to the given image.

autocontraster = vision.RandomAutoContrast()
autocontrasted_imgs = [autocontraster(orig_img) for _ in range(4)]
plot(autocontrasted_imgs)

RandomEqualize

The mindspore.dataset.vision.RandomEqualize transform randomly equalizes the histogram of the given image.

equalizer = vision.RandomEqualize()
equalized_imgs = [equalizer(orig_img) for _ in range(4)]
plot(equalized_imgs)

Augmentation Transforms

The following transforms are combinations of multiple transforms, they usually come from papers.

AutoAugment

The mindspore.dataset.vision.AutoAugment transform applies AutoAugment method based on AutoAugment: Learning Augmentation Strategies from Data.

augmenter = vision.AutoAugment(policy=vision.AutoAugmentPolicy.IMAGENET)
imgs = [augmenter(orig_img) for _ in range(4)]
plot(imgs)

BoundingBoxAugment

The mindspore.dataset.vision.BoundingBoxAugment transform applies a augmentation to the bounding box of the image using given augmentation.

bboxes = np.array([[50, 50, 125, 125]], dtype=np.float32)
transform = vision.RandomRotation(degrees=90)
bbox_augment = vision.BoundingBoxAugment(transform=transform, ratio=1.0)
img, bbox = bbox_augment(orig_img, bboxes)
plot([img], [bboxes, bbox])

LinearTransformation

The mindspore.dataset.vision.LinearTransformation transform applies a linear transformation to the input numpy.ndarray image with a square transformation matrix and a mean vector.

height, width = 64, 64
dim = 3 * height * width

resize = vision.Resize((height, width))
resized_img = resize(orig_img)

augmenter = vision.LinearTransformation(transformation_matrix=np.eye(dim), mean_vector=np.zeros(dim))
array_img = np.array(resized_img).reshape(dim)
transformed_img = augmenter(array_img)
transformed_img = transformed_img.reshape(height, width, 3).astype(np.uint16)

plot([transformed_img])

RandomColor

The mindspore.dataset.vision.RandomColor transform randomly adjusts color of the input image. The input image can be RGB image.

augmenter = vision.RandomColor(degrees=[0.1, 1.9])
imgs = [augmenter(orig_img) for _ in range(4)]
plot(imgs)

RandomLighting

The mindspore.dataset.vision.RandomLighting transform randomly changes the brightness of the input image. Adds AlexNet PCA noise to the image. The eigenvalues ​​and eigenvectors of AlexNet PCA noise are calculated from the ImageNet dataset.

augmenter = vision.RandomLighting(alpha=1.0)
imgs = [augmenter(orig_img) for _ in range(4)]
plot(imgs)

RandomSelectSubpolicy

The mindspore.dataset.vision.RandomSelectSubpolicy transform randomly selects a subpolicy from a list of subpolicies.

policy = [[(vision.RandomRotation((45, 45)), 0.5), (vision.RandomVerticalFlip(), 0.5)]]
augmenter = vision.RandomSelectSubpolicy(policy)
imgs = [augmenter(orig_img) for _ in range(4)]
plot(imgs)

ToTensor

The mindspore.dataset.vision.ToTensor transform converts the input PIL image or Numpy array to a tensor.

to_tensor = vision.ToTensor()
img = to_tensor(orig_img)
plot([img])

ToType

The mindspore.dataset.vision.ToType transform converts the input image to the specified data type.

to_type = vision.ToType(dtype.float32)
img = to_type(orig_img)
plot([img])

HWC2CHW

The mindspore.dataset.vision.HWC2CHW transform changes the image from HWC to CHW format.

hsc2chw = vision.HWC2CHW()
img = [hsc2chw(orig_img)]
plot(img)

UniformAugment

The mindspore.dataset.vision.UniformAugment transform applies a series of augmentation operations to the input image. The implementation of the augmentation is based on the paper UniformAugment: A Simple Data Augmentation Strategy for Consistent Neural Network Training.

transforms = [vision.RandomCrop(size=[20, 40], padding=[32, 32, 32, 32]), vision.RandomRotation(45)]
augmenter = vision.UniformAugment(transforms=transforms, num_ops=2)
imgs = [augmenter(orig_img) for _ in range(4)]
plot(imgs)

CutOut

The mindspore.dataset.vision.CutOut randomly crops a rectangular area from the input image and the pixel values ​​in the area are set to 0.

augmenter = vision.CutOut(length=32, num_patches=2, is_hwc=True)
imgs = [augmenter(orig_img)]
plot(imgs)

CutMixBatch

The mindspore.dataset.vision.CutMixBatch performs CutMix data augmentation on the input images. It mixes the image contents by randomly selecting two images from a batch of images, then cutting a random rectangular region from one image and pasting it to the other image. Labels should be converted to one-hot encoding format and batched before using this operation.

transformer = vision.Grayscale(3)
gray_img = transformer(orig_img)

images = np.stack([np.array(orig_img), gray_img, np.array(orig_img), gray_img], axis=0)
num_classes = 10
batch_size = 4
labels = np.random.randint(0, num_classes, size=(batch_size,))
one_hot_labels = np.eye(num_classes)[labels]

augment = vision.CutMixBatch(image_batch_format=vision.ImageBatchFormat.NHWC, alpha=1.0, prob=1.0)
images, labels = augment(images, one_hot_labels)
transformed_images = [Image.fromarray(image.astype(np.uint8)) for image in images]
plot(transformed_images)

MixUp

The mindspore.dataset.vision.MixUp performs MixUp data augmentation on the input images. Randomly mix a batch of input numpy.ndarray images and their labels. Multiply each image by a weight lambda randomly generated from a Beta distribution, and add the product of the other image and 1-lambda. Mix the labels corresponding to the images with the same lambda value. Make sure the labels are pre-one-hot encoded.

transformer = vision.Grayscale(3)
gray_img = transformer(orig_img)

images = np.stack([np.array(orig_img), gray_img, np.array(orig_img), gray_img], axis=0)
num_classes = 10
batch_size = 4
labels = np.random.randint(0, num_classes, size=(batch_size,))
one_hot_labels = np.eye(num_classes)[labels]

mixup = vision.MixUp(batch_size=batch_size, alpha=1.0)
images, labels = mixup(images, one_hot_labels)
transformed_images = [Image.fromarray(image.astype(np.uint8)) for image in images]
plot(transformed_images)

MixUpBatch

The mindspore.dataset.vision.MixUpBatch performs MixUp data augmentation on the input images. Randomly selects two images from the batch, multiplies one image by a random weight lambda, and the other image by 1 - lambda, and adds the two together. The same process is applied to the annotations. The value of lambda is generated from a Beta distribution with parameter alpha. The calculation method is: randomly generate two coefficients \(x_1\) and \(x_2\) in the range [alpha, 1], and calculate \(lambda = x_1 / (x_1 + x_2)\). Before calling this process, the annotations need to be made into one-hot format and batched.

transformer = vision.Grayscale(3)
gray_img = transformer(orig_img)

images = np.stack([np.array(orig_img), gray_img, np.array(orig_img), gray_img], axis=0)
num_classes = 10
batch_size = 4
labels = np.random.randint(0, num_classes, size=(batch_size,))
one_hot_labels = np.eye(num_classes)[labels]

mixup_batch = vision.MixUpBatch(alpha=2.0)
images, labels = mixup_batch(images, one_hot_labels)
transformed_images = [Image.fromarray(image.astype(np.uint8)) for image in images]
plot(transformed_images)

The alpha parameter in MixUp and MixUpBatch is the shape parameter of the Beta distribution used to generate the mixing coefficients.

The larger the value of alpha, the more uniform the Beta distribution tends to be, and the lambda value will be more inclined to 0.5, resulting in a more balanced image mixing. On the contrary, when alpha is small, the lambda value is more likely to be close to 0 or 1, which means that the mixed image will be more inclined to one of the original images.

To better understand how different alpha values ​​lead to different mixing effects, refer to the following examples. As original image use already defined orig_img and its rotated image.

# Define the illustration function
def visualize_images(original, transformed, title):
    plt.figure(figsize=(10, 5))
    for i in range(len(original)):
        plt.subplot(2, len(original), i + 1)
        plt.imshow(original[i])
        plt.title(f"Original {i+1}")
        plt.axis('off')

    for i in range(len(transformed)):
        plt.subplot(2, len(transformed), len(original) + i + 3)
        plt.imshow(transformed[i])
        plt.title(f"Transformed {i+1}")
        plt.axis('off')

    plt.suptitle(title)
    plt.show()

# Loading the image
transformer = vision.Rotate(degrees=90)
gray_img = transformer(orig_img)

# Creating a batch of images
images = np.stack([np.array(orig_img), gray_img, np.array(orig_img), gray_img], axis=0)
num_classes = 10
batch_size = 4
labels = np.random.randint(0, num_classes, size=(batch_size,))
one_hot_labels = np.eye(num_classes)[labels]

# Calculate lambda value
def calculate_lambda(alpha):
    x1 = np.random.beta(alpha, alpha)
    x2 = np.random.beta(alpha, alpha)
    return x1 / (x1 + x2)

# Calling MixUpBatch augmenter.
def apply_mixup_and_visualize(alpha=1.0):
    mixup_batch = vision.MixUpBatch(alpha=alpha)
    mixed_images, _ = mixup_batch(images, one_hot_labels)
    transformed_images = [Image.fromarray(image.astype(np.uint8)) for image in mixed_images]
    visualize_images([orig_img, gray_img], transformed_images, f"MixUp Images with alpha={alpha}")
    lambda_val = calculate_lambda(alpha)
    print(f"Lambda value for alpha={alpha}: {lambda_val}")

# Test different alpha values
for alpha in [0.2, 0.5, 1.0, 2.0]:
    apply_mixup_and_visualize(alpha=alpha)

# Performance Testing
import time
start_time = time.time()
mixup_batch = vision.MixUpBatch(alpha=1.0)
mixed_images, _ = mixup_batch(images, one_hot_labels)
print("Execution Time:", time.time() - start_time, "seconds")

Lambda value for alpha=0.2: 0.9782197460880944

Lambda value for alpha=0.5: 0.9870954124682336

Lambda value for alpha=1.0: 0.13932897475036013

Lambda value for alpha=2.0: 0.22601399133292524
Execution Time: 0.0014693737030029297 seconds

SlicePatches

The mindspore.dataset.vision.SlicePatches transform slices the input image into patches of the specified size.

num_h, num_w = 1, 4
slice_patches_op = vision.SlicePatches(num_height=num_h, num_width=num_w, slice_mode=vision.SliceMode.PAD, fill_value=0)

# Convert image to Mindspore dataset
data = np.array([orig_img])
numpy_slices_dataset = ds.NumpySlicesDataset(data, ["image"])
transforms_list = [slice_patches_op]
cols = ['img' + str(x) for x in range(num_h * num_w)]

# Apply the SlicePatches transform
numpy_slices_dataset = numpy_slices_dataset.map(operations=transforms_list, input_columns=["image"], output_columns=cols)

# Retrieve the patched images and plot them
for item in numpy_slices_dataset.create_dict_iterator(num_epochs=1, output_numpy=True):
    patch_images = [item[col] for col in cols]
    plot(patch_images)

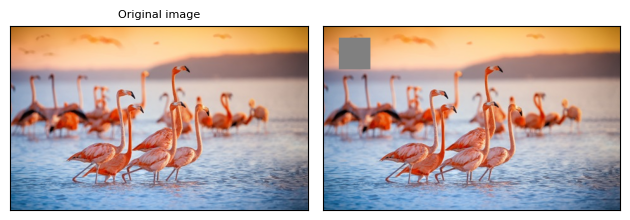

Erase

The mindspore.dataset.vision.Erase transform erases a rectangular area from the input image and fills the area with the specified pixel value.

augmenter = vision.Erase(top=20, left=25, height=50, width=50, value=128, inplace=True)
imgs = [augmenter(orig_img)]
plot(imgs)

RandAugment

The mindspore.dataset.vision.RandAugment applies RandAugment method based on RandAugment: Learning Augmentation Strategies from Data.

augmenter = vision.RandAugment()
imgs = [augmenter(orig_img) for _ in range(4)]
plot(imgs)

TrivialAugmentWide

The mindspore.dataset.vision.TrivialAugmentWide applies TrivialAugmentWide method based on TrivialAugmentWide: Tuning-free Yet State-of-the-Art Data Augmentation.

augmenter = vision.TrivialAugmentWide()
imgs = [augmenter(orig_img) for _ in range(4)]
plot(imgs)

Randomly-applied transforms

Some transforms are randomly-applied with a probability. That is, the transformed image may be the same as the original one.

RandomHorizontalFlip

The mindspore.dataset.vision.RandomHorizontalFlip transform performs horizontal flip of an image, with a given probability.

hflipper = vision.RandomHorizontalFlip(0.5)
transformed_imgs = [hflipper(orig_img) for _ in range(4)]
plot(transformed_imgs)

RandomHorizontalFlipWithBBox

The mindspore.dataset.vision.RandomHorizontalFlipWithBBox transform performs horizontal flip of an image and bounding box, with a given probability.

random_flip = vision.RandomHorizontalFlipWithBBox(0.7)
bboxes = np.array([[50, 50, 125, 125]], dtype=np.float32)
img, bbox = random_flip(orig_img, bboxes)
plot([img], [bboxes, bbox])

RandomVerticalFlip

The mindspore.dataset.vision.RandomVerticalFlip transform performs vertical flip of an image, with a given probability.

vflipper = vision.RandomVerticalFlip(0.5)
transformed_imgs = [vflipper(orig_img) for _ in range(4)]
plot(transformed_imgs)

RandomVerticalFlipWithBBox

The mindspore.dataset.vision.RandomVerticalFlipWithBBox transform performs vertical flip of an image and bounding box, with a given probability.

random_flip = vision.RandomVerticalFlipWithBBox(0.7)
bboxes = np.array([[50, 50, 125, 125]], dtype=np.float32)
img, bbox = random_flip(orig_img, bboxes)
plot([img], [bboxes, bbox])

RandomApply

The mindspore.dataset.transforms.RandomApply transform randomly applies a list of transforms, with a given probability.

import mindspore.dataset.transforms as T

applier = T.RandomApply(transforms=[vision.RandomCrop(size=(64, 64))], prob=0.5)
transformed_imgs = [applier(orig_img) for _ in range(4)]
plot(transformed_imgs)

Process Image File In Dataset Pipeline

Use the mindspore.dataset.ImageFolderDataset to read image content into dataset pipeline and then we can do further transforms based on pipeline.

from download import download

import os
import mindspore.dataset as ds

# Download a small imagenet as example
url = "https://mindspore-website.obs.cn-north-4.myhuaweicloud.com/notebook/datasets/imageset.zip"
download(url, "./", kind="zip", replace=True)

# There are 5 classes in the image folder.
os.listdir("./imageset")

# Load these 5 classes into dataset pipeline
dataset = ds.ImageFolderDataset("./imageset", shuffle=False)

# check the column names inside the dataset. "image" column represents the image content and "label" column represents the corresponding label of image.
print("column names:", dataset.get_col_names())

# since the original image is not decoded, apply decode first on "image" column
dataset = dataset.map(vision.Decode(), input_columns=["image"])

# check results
print(">>>>> after decode")
for data, label in dataset:
    print(data.shape, label)

# let's do some transforms on dataset
# apply resize on images
dataset = dataset.map(vision.Resize(size=(48, 48)), input_columns=["image"])

# check results
print(">>>>> after resize")
images = []
for image, label in dataset:
    images.append(image.asnumpy())
    print(image.shape, label)

plot(images[:5], first_origin=False)

Downloading data from https://mindspore-website.obs.cn-north-4.myhuaweicloud.com/notebook/datasets/imageset.zip (45 kB)

file_sizes: 100%|███████████████████████████| 45.7k/45.7k [00:00<00:00, 167kB/s]
Extracting zip file...
Successfully downloaded / unzipped to ./
column names: ['image', 'label']
>>>>> after decode
(64, 64, 3) 0
(64, 64, 3) 0
(64, 64, 3) 0
(64, 64, 3) 1
(64, 64, 3) 1
(64, 64, 3) 1
(64, 64, 3) 1
(64, 64, 3) 2
(64, 64, 3) 2
(64, 64, 3) 2
(64, 64, 3) 3
(64, 64, 3) 3
(64, 64, 3) 3
(64, 64, 3) 4
(64, 64, 3) 4
(64, 64, 3) 4
>>>>> after resize
(48, 48, 3) 0
(48, 48, 3) 0
(48, 48, 3) 0
(48, 48, 3) 1
(48, 48, 3) 1
(48, 48, 3) 1
(48, 48, 3) 1
(48, 48, 3) 2
(48, 48, 3) 2
(48, 48, 3) 2
(48, 48, 3) 3
(48, 48, 3) 3
(48, 48, 3) 3
(48, 48, 3) 4
(48, 48, 3) 4
(48, 48, 3) 4
